Bobcat Center Control Rider Pallet Jack (6,500 LBS)
|
Quick Look
|
SPECIFICATIONS - Length:
|
101 in |
SPECIFICATIONS - Load Center:
|
24 in |
SPECIFICATIONS - Machine Rated Capacity:
|
6,600 lb |
SPECIFICATIONS - Travel Speed - Loaded:
|
3.6 mph |
|
HANGCHA Center Control Rider Pallet Truck (6,000-8,000 LBS)
|
Quick Look
|
| APPEARANCE |
• The A Series Center Control Rider Pallet Truck has a smooth vivid profile and was designed to be ergonomic. The exterior of this forklift is powder coated in a durable, easy-to-see, red finish.
• This pallet truck uses stamped steel plates and injection molded parts. This creates a robust and durable product that is able to successfully take on the wear and tear of a warehouse environment. |
| SAFETY |
• The center control pallet truck features both release and emergency brakes to ensure safe driving.
• Regenerative braking prevents the pallet truck from sliding down ramps for operational safety.
• The red brake button on the head of the tiller causes the pallet truck to brake when pressed. This prevents the operator from being injured.
• The pallet truck has dual protection features for operator safety. The lifting limit switch prevents the mechanism from lifting the load too high. The controller prevents the pallet truck from rapidly starting or stopping. These features ensure that the load won’t shift and hurt the operator.
• When the operator releases the pedal while driving, the truck will automatically reduce its travel speed and steering angle. The truck also disables the lifting and lowering functions to ensure operator safety. |
| STANDARD FEATURES |
• Traction Motor
• Curtis Controller
• Hydraulic Power Unit
• Electric Power Steering System
• Multi-Functional Large Screen Instrument Display
• Key Switch
• Electronic Lifting Limit
• Horn
• Polyurethane Drive Wheel
• Polyurethane Load Wheel
• Caster Wheel |
| MAINTENANCE |
• The brushless AC drive motor is maintenance-free. This significantly reduces the operating costs of the pallet truck.
• The multi-functional, large screen instrument display includes the battery display, real-time speed, and self-diagnostic functions to facilitate maintenance and operation.
• The maintenance hatch opens to allow for easy access to all of the truck’s components.
• The spindles are equipped with lubricated sleeves and oil cups to facilitate maintenance and promote a long service life. |
|
Toyota Center-Controlled Rider Pallet Jack (6,000-8,000 LBS)
|
Quick Look
|
Height (Extended Handle):
|
56 in |
Load Capacity:
|
6,000 - 8,000 lb. Load Capacity |
Overall Length:
|
90.3 - 155.7 in |
Overall Width:
|
32.5 in |
|
Toyota Counter-Balanced Stacker (2,000-4,000 LBS)
|
Quick Look
|
Length to Forkface:
|
64.8 - 76.6 in |
Load Capacity:
|
2,000 - 4,000 lb. Load Capacity |
Mast Lowered Height:
|
83 in |
Overall Width:
|
34.1 in |
|
Toyota Electric Walkie Pallet Jack (4,500 LBS)
|
Quick Look
|
Height (Extended Handle):
|
47.2 in |
Load Capacity:
|
4,500 lb. Load Capacity |
Overall Length:
|
53.4 - 81.4 in |
Overall Width:
|
26.6 in |
|
Bobcat Electric Walkie Pallet Jack (4,500 LBS)
|
Quick Look
|
SPECIFICATIONS - Length:
|
69.9 in |
SPECIFICATIONS - Load Center:
|
24 in |
SPECIFICATIONS - Machine Rated Capacity:
|
4,500 lb |
SPECIFICATIONS - Travel Speed - Loaded:
|
3.7 mph |
|

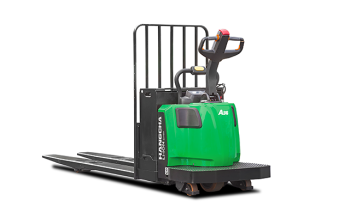

HANGCHA End Control Rider Pallet Truck (6,000-8,000 LBS)
|
Quick Look
|
| SAFETY |
• The end control pallet truck features three types of braking functions, release braking, reverse braking, and emergency braking, for safe operation.
• The anti-sliding function on a grade ensures a safe operational workspace.
• The emergency reversing button at top of the tiller protects the operator from being injured in case of an emergency during the backward operation of the truck. |
| RELIABILITY |
• The pallet truck frame is made of high-strength steel plates. It is designed to have a long service life in various working conditions.
• The box-type stamped forks are stronger, more rigid, and impact resistant.
• Water-proof plug connectors offer protection for all of the cables. This significantly increases the reliability of the end control rider’s electrical system.
• The limit switch of the lifting motor eliminates the overflow of the hydraulic power unit. This is more energy-efficient and can protect the power unit’s motor. |
| STANDARD FEATURES |
• Brushless AC driving motor
• High-Performance PU Driving Wheels
• CURTIS AC Controller
• High-Performance Hydraulic Power Unit
• Anti-Skid Pedal Pad
• CANBUS FREI Multi-Functional Tiller
• Multi-Functional Instrument Display
• PU Buffering Elastic Auxiliary Wheels
• Electromagnetic Brake
• Load Backrest
• Caster Wheel |
| COMFORT |
• Low-noise reduction gearbox and high-elasticity PU traction wheel result in low noise.
• Additional wheels supported with PU blocks and springs realize more stable traveling.
• The inner concave design at the bottom of the machine’s hood offers more room for the operator’s feet. |
|
Toyota End-Controlled Rider Pallet Jack (6,000-8,000 LBS)
|
Quick Look
|
Height (Extended Handle):
|
56.7 in |
Load Capacity:
|
6,000 - 8,000 lb. Load Capacity |
Overall Length:
|
76.4 - 186.8 in |
Overall Width:
|
36 in |
|
HANGCHA Industrial Walkie CB Stacker (2,000-4,000 LBS)
|
Quick Look
|
STANDARD SPECIFICATIONS:
|
• Brushless AC Drive Motor
• CURTIS AC Drive Motor Controller + Oil Pump Motor Controller
• Electronic Power Steering System
• Automatic Deceleration when Turning
• Proportionally Regulated Lifting, Lowering, and Tilting Speed
• Multi-Functional Battery Condition Meter
• High Performance Load Bearing Wheels
• 42” Fork Length
• 8.3-35.4” Adjustable Outer Distance of the Forks
• 106.3” Limited Free Lift 2 Stage Mast
• Soft Landing System
• Multi-Function Tiller
• Speed Limit when Fork is Elevated
• Creep Speed Function
• Emergency Reverse Function
• Horn
• 3° and 8° Forward and Backward Tilt of Mast Respectively
• Load Backrest |
|
HANGCHA Industrial Walkie Reach Stacker (3,000 LBS)
|
Quick Look
|
| MAINTENANCE |
• The brushless AC motor reduces operation costs significantly because it is maintenance-free.
• The integrated battery indicator meter, timer, and fault self-diagnosis are convenient for maintenance.
• The back cover can be opened fully to reveal all key components and parts. This is extremely convenient for the maintenance of the entire machine. |
| RELIABILITY |
• The three-support-point, low center of gravity, and the high-strength steel plate structure feature a large residual load-bearing capacity and a long service life.
• All wires and cables are protected to increase the reliability of the electrical system significantly.
• The non-contact proximity switch features a long service life and is reliable.
• The power plug is fastened to the stacker’s body. This prevents the plug from being damaged due to impact when the battery is lifted for install |
| HIGH PERFORMANCE |
• The Electric Power Steering (EPS) system makes maneuvering and load handling extremely easy.
• The brushless AC travel motor features excellent acceleration, outstanding climbing ability, low heat emission, and is maintenance-free.
• The latest CURTIS AC control system is highly efficient thanks to its accurate and stable control.
• The CANBUS structure makes communication between all of the machine’s functions faster and more reliable.
• The truck’s regenerative braking prevents it from sliding on a grade.
• Tiller, switches, plug connectors, meters, and other components are all parts from industry-known suppliers to ensure reliability, performance, and ease of service.
• The forks and load backrest have a backward and forward tilt function as a part of the standard configuration. This creates a safer experience when loading and unloading goods. |
| COMFORT |
• All movements of the fork can be regulated with stepless speed. This provides more accurate and stable handling of goods.
• The imported tiller’s function buttons are designed to allow the operator to comfortably operate the stacker.
• The standard configuration creep speed driving function allows the truck to move at slow speeds. This increases the stacker’s maneuverability and allows it to stack goods even in confined spaces.
• The stacker’s compact body and large rounded corner design make the truck perfect for narrow aisle operation.
• The optional battery side roll out makes swapping out the battery fast and easy. |
|
Toyota Industrial Walkie Stacker (2,200-4,000 LBS)
|
Quick Look
|
Length to forkface:
|
38.4 - 47.9 in |
Load Capacity:
|
2,200 - 4,000 lb. Load Capacity |
Mast Lowered Height:
|
83 in |
Overall Width:
|
40 - 58 in |
|
HANGCHA Industrial Walkie Stacker (2,500-4,000 LBS)
|
Quick Look
|
| DESIGN | The A Series Walkie Counterbalanced Stacker is designed to go where all general walkie stackers do. However, the counterbalanced stacker is unique because it is also designed for operations that use enclosed pallets. The design makes moving enclosed pallets easier because it allows for the little clearance there is in the pallet. Cutting-edge AC drive control technology and electric power steering provide advanced performance, comfortable operation, safety, reliability, and low maintenance costs. It can be used for loading and unloading in warehouses, supermarkets, and workshops. |
| APPEARANCE |
• The A Series Walkie Straddle Stacker Pallet Truck has a smooth vivid profile and was designed to be ergonomic. The exterior of this forklift is powder coated in a durable, easy-to-see, red finish.
• This pallet truck uses stamped steel plates and injection molded parts. This creates a robust and durable product that is able to successfully take on the wear and tear of a warehouse environment. |
| HIGH PERFORMANCE |
• The truck uses stepless speed regulation for more accurate lifting and lowering of goods.
• The Electric Power Steering system makes maneuvering and load handling extremely easy.
• The brushless AC travel motor features excellent acceleration, outstanding climbing ability, low heat emission, and is maintenance-free.
• The latest CURTIS AC control system is highly efficient thanks to its accurate and stable control.
• The CANBUS structure makes communication between all of the machine’s functions faster and more reliable.
• The truck’s regenerative braking prevents it from sliding on a grade.
• The forward and backward tilting function of the carriage makes loading and unloading goods safer. |
| STANDARD FEATURES |
• AC Drive Motor
• CURTIS AC Drive & Oil Pump Motor Controller
• Electric Power Steering System
• Automatic Deceleration at Turns
• Proportional Speed Regulation for all Fork Operations
• Multi-Function Battery Condition Meter
• High-Performance Load Wheels
• 42” Fork Length
• 8.3-31.1” Range for the Adjustable Outer Distance of Forks
• 106.3” Limited Free Lift 2 Stage Mast
• Soft Landing Feature
• Multi-Function Tiller
• Speed Limited when Fork is at Elevated Location
• Horn
• Key Switch
• Creep Speed Function
• Emergency Reverse Feature
• Wire Mesh Mast Screen |
|
