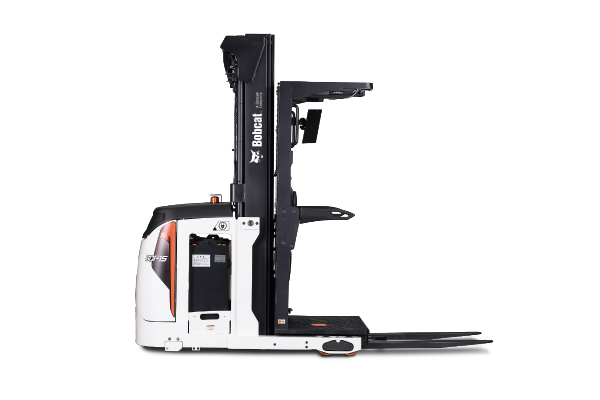

Bobcat BOP15S-9
|
Quick Look
|
SPECIFICATIONS - Length:
|
120 in |
SPECIFICATIONS - Load Center:
|
24 in |
SPECIFICATIONS - Machine Rated Capacity:
|
3,000 lb |
SPECIFICATIONS - Overhead Guard Height:
|
79 in |
|
HANGCHA Electric Pantograph Reach Truck (3,000-4,500 LBS)
|
Quick Look
|
HIGHLY EFFICIENT |
1. The truck can operate in narrow aisles thanks to its small turning radius.
2. Both a high-power pump motor and a silent gear pump (CONCENTRIC) are used to improve the lifting speed, lowering speed, and its operating efficiency.
3. With several power modes, the truck is able to adapt to different operating conditions.
4. The regenerative braking system provides an increase in the truck’s operating time. |
STANDARD EQUIPMENT |
• AC motor and controller
• Multi-function instrument
•EPS ( Electric Power Steering) system
• 198" (5.03m) wide-view triplex mast
• Fork tilting
• Load backrest
• Overhead guard
• Soft landing system
• Safe operating system
• Automatic decelerate speed at the corner
• Speed automatic limit when mast high lifting
• Damper pedal
• Adjustable backrest and armrest
• Battery side roll out
• Multi-task control handle
• Electro-hydraulic proportional valve system
• Polyurethane tire
• Headlights
• Folder
• Emergency cut-off switch
• Electric horn
• Static strap
• EPB ( Electric Parking Brake) |
RELIABILITY AND SAFETY |
1. The four-pivot structure, low center of gravity, and high strength of the main frame components are designed to withstand the maximum load capacity of the reach truck.
2.The controller, connectors, battery plug, and cut-off switch are all parts from industry known suppliers to ensure reliability, performance, and ease of service.
3. The ZF transmission, SCHABMULLER drive motor, and the efficient AC power system greatly improve the reliability and service life of the narrow aisle reach truck.
4. The controller manipulates the truck’s steering angle, lifting height, and traveling speed in unison to provide safer operations.
5. The multi-function control handle’s unique shape and angled design help to minimize hand movement and muscle fatigue.
6. With the pedal sensing system, the truck can be driven only if the driver stands on the pedal. If the operator takes their foot off the pedal, active braking is initiated to prevent an accident.
7. The Full Free-Lift Stage 3 Mast provides great visibility for the operator and improves operations safety. |
APPEARANCE |
The X Series Narrow Aisle Reach Truck is designed to stack and retrieve goods efficiently in narrow warehouses and at high lift heights while still maintaining a lifting capacity of up to 4,500lbs. The exterior of this forklift is powder coated in a durable, easy to see, red finish.
|
|
HANGCHA Electric Stock Picker (1,000 LBS)
|
Quick Look
|
SAFETY |
1. The low mast provides the operator with perfect visibility.
2. The controller offers limits the stock picker’s speed when cornering to ensure smooth and safe operation.
3. The safety pedals include a sensor to ensure the operator has their feet properly positioned on the platform. It automatically stops travel, lift, and lower functions if the operator doesn’t have their foot on the pedal.
4. The hydraulic system has an emergency manual lowering valve that can be operated from the rear of the stock picker to lower the platform.
|
RELIABILITY |
1. The vehicle’s frame is robust and reliable thanks to its high-strength steel frame structure.
2. All of the stock picker’s wires and cables are protected. This greatly improves the reliability of the electrical system.
3. Switches, connectors, instruments, and other key parts are all high-quality products with excellent performance and quality.
|
COMFORT |
1. The truck is designed for smooth lifting, lowering, and stability when stock picking to reduce operator fatigue.
2. Lifting & lowering of the mast are buffered to enable more comfort.
3. CURTIS multi-function instruments include functions such as mode selection and wheel position. The instruments also clearly display various information about the order picker. |
PERFORMANCE |
1. The brushless AC traction motor features excellent acceleration, outstanding climbing ability, low heat emission, and is maintenance-free.
2. The advanced CURTIS control system provides precise, smooth, and efficient control of the stock picker.
3. CANBUS structure allows for the whole vehicle to communicate faster and more reliably. |
|
Toyota Furniture Order Picker (1,600 LBS)
|
Quick Look
|
Lifting Capacity:
|
1,600 lbs Lifting Capacity |
Max Elevated Height:
|
366" Max Elevated Height |
Voltage:
|
24 / 36 Voltage |
|
HANGCHA Lithium-ion Electric Stock Picker (1,000 LBS)
|
Quick Look
|
RELIABILITY |
1. The vehicle’s frame is robust and reliable thanks to its high-strength steel frame structure.
2. All of the stock picker’s wires and cables are protected. This greatly improves the reliability of the electrical system.
3. Switches, connectors, instruments, and other key parts are all high-quality products with excellent performance and quality.
|
STANDARD FEATURES |
• AC Traction Motor
• CURTIS Controller
• Front Load Tray
• Foldable Rear Load Tray
• Automatically Decelerates when Cornering
• CURTIS Multi-Function Instrument Display
• Maintenance-Free Battery
• Battery Locking Mechanism
• Built-in Charger
• Emergency Cut-Off Switch
• Safety Pedal
• Tilt Switch
• Left and Right Guardrail
• Back Cushion
•Electromagnetic Brake
|
COMFORT |
1. The truck is designed for smooth lifting, lowering, and stability when stock picking to reduce operator fatigue.
2. Lifting & lowering of the mast are buffered to enable more comfort.
3. CURTIS multi-function instruments include functions such as mode selection and wheel position. The instruments also clearly display various information about the order picker. |
PERFORMANCE |
1. The brushless AC traction motor features excellent acceleration, outstanding climbing ability, low heat emission, and is maintenance-free.
2. The advanced CURTIS control system provides precise, smooth, and efficient control of the stock picker.
3. CANBUS structure allows for the whole vehicle to communicate faster and more reliably. |
|
Noblelift OP8.5
|
Quick Look
|
Battery Charger :
|
24V/25Ah Built-in |
Load Capacity :
|
850lb
• 220lbs Load Tray
• 330lbs Load Deck
• 300lbs Operator Compartment |
Lowered Height :
|
57.2" |
Max Working Height :
|
196.8" |
|
Toyota Order Picker (3,000 LBS)
|
Quick Look
|
Available Models:
|
3 Available Models |
Length to forkface:
|
74 - 83.75 in |
Load Capacity:
|
3,000 lb. Load Capacity |
Overall Width:
|
40 - 60 in |
|
HANGCHA Order Picker (3,000 LBS)
|
Quick Look
|
COMFORT |
1. As a part of the standard configuration, a height sensor is provided.
2. Shifting and lifting or lowering of the mast are buffered to enable more comfort.
3. CURTIS multi-function instruments include functions such as mode selection and wheel position. The instruments also clearly display various information about the order picker. |
STANDARD FEATURES |
• 36V Electrical System
• ZF Drive Unit
• INTORQ Electromagnetic Brake
• LORD Steering Gear
• CURTIS AC Motor Controller
• CURTIS Multi-Function Instrument
• Chain Switch
• Reflective Mirror
• LED Ceiling Light
• LED Side Light
• Emergency Cut Off Switch
• Alarm Light
• Height Sensor
• Safety Pedal
• Tilt Switch
• Left and Right Guard Rail
• Guard Rail Switch
• Electrostatic Belt
• Full Body Harness and Energy-Absorbing Tether
• Pallet Clamp
• Fully Variable Lift/Lower Controls
• Manual Emergency Lowering System
• Work Material Storage Compartments
• Cushioned Mast Stops
• Cushioned Mast Staging
• Automatic Return to Center Drive Wheel Upon Start-Up
• Electronic Power Steering
• Battery Compartment Rollers |
SAFETY |
1. The full-body harness provides protection for the operator.
2. A tilt switch sensor is provided to improve the operation safety.
3. The left and right guardrails are equipped with safety switches.
4. The function of proportional speed reduction in corners is equipped as standard to ensure smooth and safe turning.
5. An emergency lowering feature is included standard. This operation can be carried out via the control platform or from the rear of the vehicle, respectively.
|
HIGH PERFORMANCE |
1. The maximum full-load travel speed is 6.8mph. This allows for an increase in productivity.
2. The German ZF gearbox and German Schabmueller AC drive and steering motors provide performance, stability, and are reliable.
3. The AC hydraulic lifting system is highly efficient and maintenance-free.
4. The advanced CURTIS control system provides precise, smooth, and efficient control of the order picker.
5. CANBUS structure allows for the whole vehicle to communicate faster and more reliably. |
|
