MBW 1000 Series
| Make | MBW |
| Model | 1000 Series |
| Type | Vibratory Plates |
How can we help?
Description

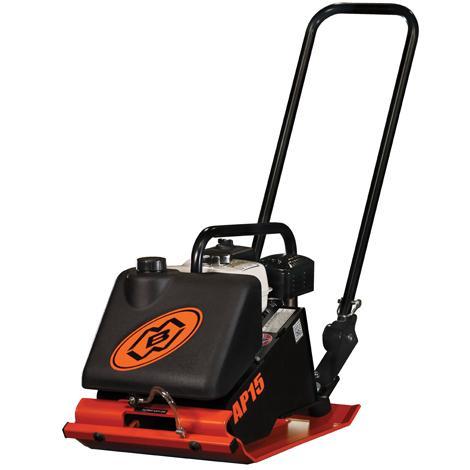

This series of economical vibratory plates, the 12, 15 & 18, are portable, and offer outstanding compaction performance. A patented suspension system places shock mounts in a predominantly shear mode at the high amplitude front end of the plate and a predominantly compressive mode at the low amplitude trailing end of the plate. This system reduces hand arm vibration and also better isolates all upper mass components, including the engine, from vibrations produced by the machine's exciter. With amplitudes up to .061 inches, centrifugal force up to 2780 lbf and travel speeds to 83 feet per minute these plates are ideal in confined areas of granular soils including sands and gravels and capable of achieving lift depths of up to 10 inches (28 cm).
These lightweight plates weighing 130 lbs (59 kg) to 178 lbs (81 kg) are easy to lift and maneuver about the jobsite. Accompanied by intense vibration this series of plates are ideally suited as an economical alternative for small to medium compaction applications.
Models
Specs
Model | GP12 | GP15 | GP18 | AP12 | AP15 | AP18 |
|---|---|---|---|---|---|---|
Engine Option | Honda GX120 | Honda GX120 | Honda GX160 | Honda GX120 | Honda GX120 | Honda GX160 |
Operating Weight | 130 lbs | 139 lbs | 174 lbs | No Water - 134 lbs Full Water - 152 lbs | No Water - 143 lbs Full Water - 161 lbs | No Water - 178 lbs Full Water - 200 lbs |
Plate Size WxL | 13 x 22.5 in | 16 x 22.5 in | 18 x 22.5 in | 13 x 22.5 in | 16 x 22.5 in | 18 x 22.5 in |
Centrifugal Force | 1920 lbs | 2000 lbs | 2780 lbs | 1920 lbs | 2000 lbs | 2780 lbs |
Exciter Speed | 5240 vpm | 5350 vpm | 5240 vpm | 5240 vpm | 5350 vpm | 5240 vpm |
Compaction Depth | Up to 10 in | Up to 10 in | Up to 10 in | Up to 10 in | Up to 10 in | Up to 10 in |
Travel Speed | Up to 83 ft/min | Up to 68 ft/min | Up to 75 ft/min | Up to 83 ft/min | Up to 68 ft/min | Up to 75 ft/min |
Compaction Area | 5395 sq ft/hr | 5440 sq ft/hr | 6750 sq ft/hr | 5395 sq ft/hr | 5440 sq ft/hr | 6750 sq ft/hr |
Water Tank Capacity | 2.3 gal | 2.3 gal | 2.3 gal |
Features
- One piece exciter with self cleaning open base plate design
- Honda GX120 Engine (12 & 15) / Honda GX160 Engine (18)
- Optional UHMW paving pad for placing interlocking paving stone/brick/block
- Optional transport wheel kit available
- Standard lift cage
Copy Set
Specs
Model | GP12 | GP15 | GP18 | AP12 | AP15 | AP18 |
|---|---|---|---|---|---|---|
Engine Option | Honda GX120 | Honda GX120 | Honda GX160 | Honda GX120 | Honda GX120 | Honda GX160 |
Operating Weight | 130 lbs | 139 lbs | 174 lbs | No Water - 134 lbs Full Water - 152 lbs | No Water - 143 lbs Full Water - 161 lbs | No Water - 178 lbs Full Water - 200 lbs |
Plate Size WxL | 13 x 22.5 in | 16 x 22.5 in | 18 x 22.5 in | 13 x 22.5 in | 16 x 22.5 in | 18 x 22.5 in |
Centrifugal Force | 1920 lbs | 2000 lbs | 2780 lbs | 1920 lbs | 2000 lbs | 2780 lbs |
Exciter Speed | 5240 vpm | 5350 vpm | 5240 vpm | 5240 vpm | 5350 vpm | 5240 vpm |
Compaction Depth | Up to 10 in | Up to 10 in | Up to 10 in | Up to 10 in | Up to 10 in | Up to 10 in |
Travel Speed | Up to 83 ft/min | Up to 68 ft/min | Up to 75 ft/min | Up to 83 ft/min | Up to 68 ft/min | Up to 75 ft/min |
Compaction Area | 5395 sq ft/hr | 5440 sq ft/hr | 6750 sq ft/hr | 5395 sq ft/hr | 5440 sq ft/hr | 6750 sq ft/hr |
Water Tank Capacity | 2.3 gal | 2.3 gal | 2.3 gal |
