Steelwrist Stone & Sorting SG32 (10-20 tonnes)

Steelwrist
Make Steelwrist
Model Stone & Sorting SG32 (10-20 tonnes)
Type Grapples

How can we help?


Description

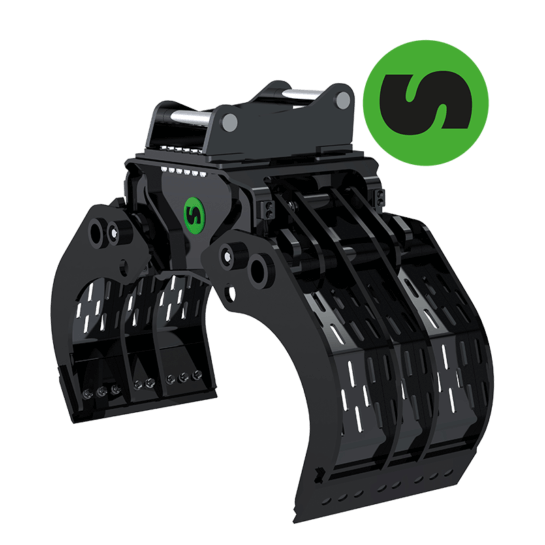

Steelwrist Powered Work Tools – Stone and sorting grapple
Heavy duty sorting grapple

The new high-performance sorting grapples are targeted for the tougher tasks such as handling large stones, timber, recycling, scrap, sorting and also for medium duty demolition work.

The tip-to-tip closing cutting edges in HB500 steel are bolt-on and turnable, which together with the high tensile steel jaws and expander pins assures a cost effective operation.
High clamping force and a super wide opening will give you the flexibility that you need.
Shimable mechanical end stops and load holding valves ensure a safe work.
The bracket has a 5° angle that levels the grapple with the tiltrotator rotation plane and works great with our SQ-technology.

Specifications

  • Bracket: S50, S60, SQ60-4, SQ60-5, SQ65, SQ70, SQ70/55, SQ80, CW40, HS21
  • Compaction area (lb): 15400
  • Gripper area, m2: 0,32
  • Gripper force, tip against tip, kN: 20
  • Gripper reach (inch): 72
  • Height, max open: 863
  • Height, tip against tip: 1010
  • Machine weight (lb): 22000-44000
  • Max operating pressure (bar): 250
  • Weight (lb): 1056
