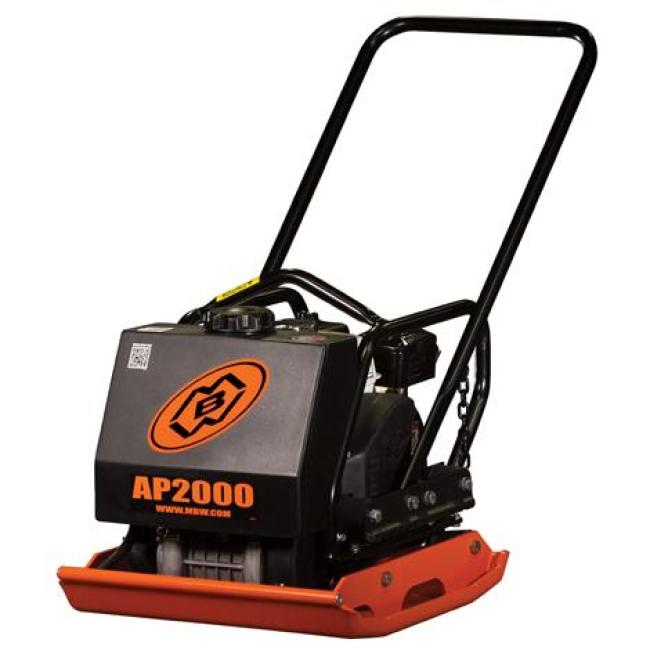

MBW AP2000 Vibratory Plate

All Compaction Equipment

How can we help?

(406) 541-8903

AP2000

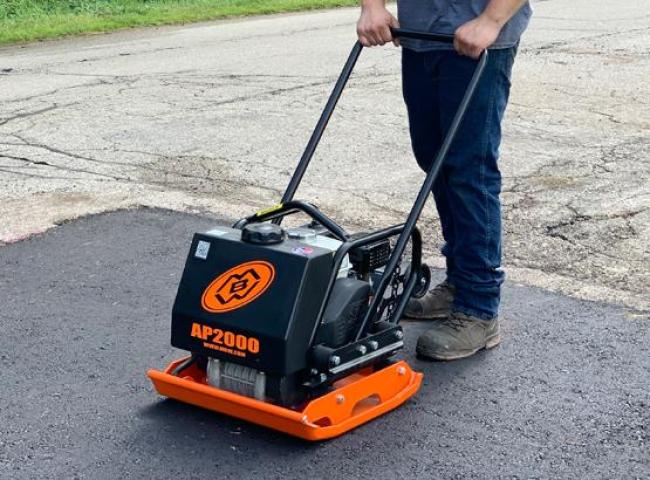

MBW’s AP2000 was the first vibratory plate compactor built specifically for asphalt work. Frequency, amplitude, centrifugal force and machine weight are all dialed in for maximum productivity on asphalt. It is powered by a Honda GX160 engine.

The AP2000 is a 20 inch plate built for the punishment that comes with the job. Its stress-relieved steel plate resists cracking and holds up for the long haul. The aluminum exciter housing sheds heat quickly, and custom lubricants help protect bearings and seals. A self-cleaning plate helps keep dirt and material from building up around the belt and pulley system.

AP2000

Details
Features

Specs

Model	AP2000	GP2000	AP2018
Engine Option	Honda GX160	Honda GX160	Honda GX160
Operating Weight	No Water - 168 lbs Full Water - 193 lbs	165 lbs	No Water - 168 lbs Full Water - 178 lbs
Plate Size WxL	20 x 22 in	20 x 22 in	20 x 22 in
Centrifugal Force	2475 lbs	3250 lbs	2475 lbs
Exciter Speed	4400 vpm	5050 vpm	4400 vpm
Compaction Depth	Up to 12 in	Up to 12 in	Up to 12 in
Travel Speed	Up to 90 ft/min	Up to 120 ft/min	Up to 90 ft/min
Compaction Area	9000 sq ft/hr	12000 sq ft/hr	9000 sq ft/hr
Water Tank Capacity	3 gal		1 gal

Features

Plate Size (WxL): 20 x 22
Compaction Area: 9,000 ft2/hr
Exciter Speed: 4,400 vpm
Amplitude: No Water--0.082 in, Full Water--0.071 in
Travel Speed: Up to 90 ft/min
Water Tank Capacity: 3 gal
Operating Weight: No Water--168 lbs, Full Water--193 lbs
Engine: Honda GX160
Centrifugal Force: 2,475 lbs
Compaction Depth: Up to 12 in

Details

Specs

Model	AP2000	GP2000	AP2018
Engine Option	Honda GX160	Honda GX160	Honda GX160
Operating Weight	No Water - 168 lbs Full Water - 193 lbs	165 lbs	No Water - 168 lbs Full Water - 178 lbs
Plate Size WxL	20 x 22 in	20 x 22 in	20 x 22 in
Centrifugal Force	2475 lbs	3250 lbs	2475 lbs
Exciter Speed	4400 vpm	5050 vpm	4400 vpm
Compaction Depth	Up to 12 in	Up to 12 in	Up to 12 in
Travel Speed	Up to 90 ft/min	Up to 120 ft/min	Up to 90 ft/min
Compaction Area	9000 sq ft/hr	12000 sq ft/hr	9000 sq ft/hr
Water Tank Capacity	3 gal		1 gal

Features
Features
- Plate Size (WxL): 20 x 22
- Compaction Area: 9,000 ft2/hr
- Exciter Speed: 4,400 vpm
- Amplitude: No Water--0.082 in, Full Water--0.071 in
- Travel Speed: Up to 90 ft/min
- Water Tank Capacity: 3 gal
- Operating Weight: No Water--168 lbs, Full Water--193 lbs
- Engine: Honda GX160
- Centrifugal Force: 2,475 lbs
- Compaction Depth: Up to 12 in
