MBW AP2000 Vibratory Plate
| Make | MBW |
| Model | AP2000 |
| Type | All Compaction Equipment |
How can we help?
Description

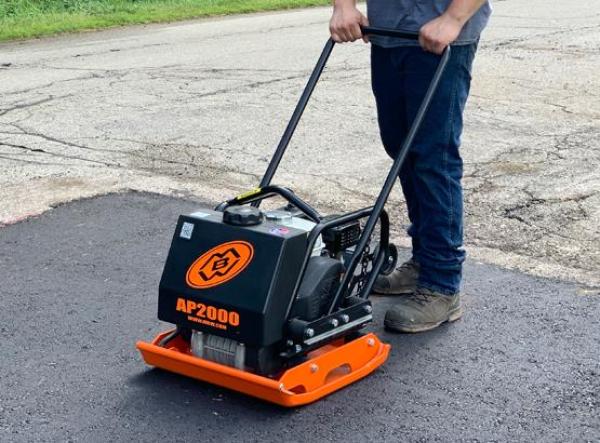

AP2000
MBW’s AP2000 was the first vibratory plate compactor built specifically for asphalt work. Frequency, amplitude, centrifugal force and machine weight are all dialed in for maximum productivity on asphalt. It is powered by a Honda GX160 engine.
The AP2000 is a 20 inch plate built for the punishment that comes with the job. Its stress-relieved steel plate resists cracking and holds up for the long haul. The aluminum exciter housing sheds heat quickly, and custom lubricants help protect bearings and seals. A self-cleaning plate helps keep dirt and material from building up around the belt and pulley system.
Models
Specs
Model | AP2000 | GP2000 | AP2018 |
|---|---|---|---|
Engine Option | Honda GX160 | Honda GX160 | Honda GX160 |
Operating Weight | No Water - 168 lbs Full Water - 193 lbs | 165 lbs | No Water - 168 lbs Full Water - 178 lbs |
Plate Size WxL | 20 x 22 in | 20 x 22 in | 20 x 22 in |
Centrifugal Force | 2475 lbs | 3250 lbs | 2475 lbs |
Exciter Speed | 4400 vpm | 5050 vpm | 4400 vpm |
Compaction Depth | Up to 12 in | Up to 12 in | Up to 12 in |
Travel Speed | Up to 90 ft/min | Up to 120 ft/min | Up to 90 ft/min |
Compaction Area | 9000 sq ft/hr | 12000 sq ft/hr | 9000 sq ft/hr |
Water Tank Capacity | 3 gal | 1 gal |
Features
- Plate Size (WxL): 20 x 22
- Exciter Speed: 4,400 vpm
- Compaction Area: 9,000 ft2/hr
- Engine: Honda GX160
- Amplitude: No Water--0.082 in, Full Water--0.071 in
- Operating Weight: No Water--168 lbs, Full Water--193 lbs
- Centrifugal Force: 2,475 lbs
- Compaction Depth: Up to 12 in
- Travel Speed: Up to 90 ft/min
- Water Tank Capacity: 3 gal
Copy Set
Specs
Model | AP2000 | GP2000 | AP2018 |
|---|---|---|---|
Engine Option | Honda GX160 | Honda GX160 | Honda GX160 |
Operating Weight | No Water - 168 lbs Full Water - 193 lbs | 165 lbs | No Water - 168 lbs Full Water - 178 lbs |
Plate Size WxL | 20 x 22 in | 20 x 22 in | 20 x 22 in |
Centrifugal Force | 2475 lbs | 3250 lbs | 2475 lbs |
Exciter Speed | 4400 vpm | 5050 vpm | 4400 vpm |
Compaction Depth | Up to 12 in | Up to 12 in | Up to 12 in |
Travel Speed | Up to 90 ft/min | Up to 120 ft/min | Up to 90 ft/min |
Compaction Area | 9000 sq ft/hr | 12000 sq ft/hr | 9000 sq ft/hr |
Water Tank Capacity | 3 gal | 1 gal |
