MBW GP2000 Vibratory Plate
| Make | MBW |
| Model | GP2000 |
| Type | All Compaction Equipment |
How can we help?
Description
GP2000

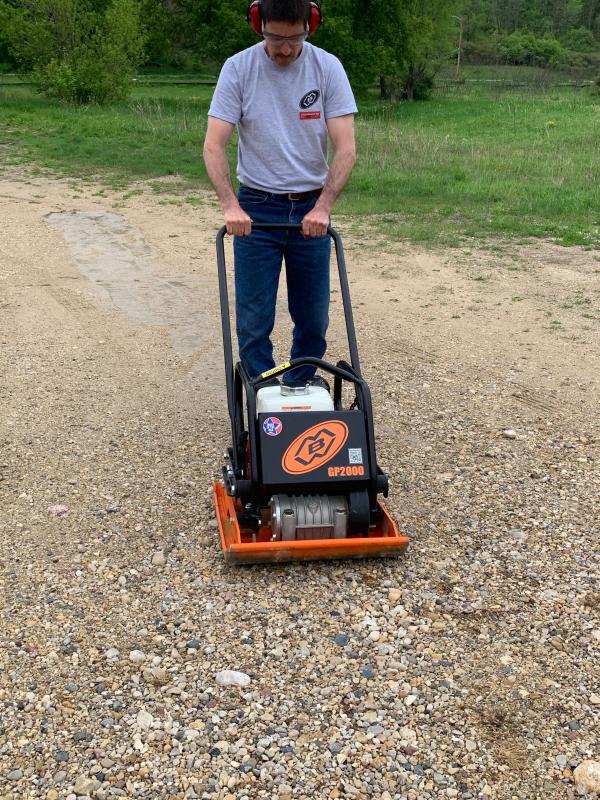

The GP2000 is a variation of the AP2000, with frequency, amplitude, centrifugal force and weight tuned for maximum performance in sand and gravel.
The GP2000 is capable of delivering excellent densities on lifts of granular soils up to 12 in. (31 cm).*
Models
Specs
Model | AP2000 | GP2000 | AP2018 |
|---|---|---|---|
Engine Option | Honda GX160 | Honda GX160 | Honda GX160 |
Operating Weight | No Water - 168 lbs Full Water - 193 lbs | 165 lbs | No Water - 168 lbs Full Water - 178 lbs |
Plate Size WxL | 20 x 22 in | 20 x 22 in | 20 x 22 in |
Centrifugal Force | 2475 lbs | 3250 lbs | 2475 lbs |
Exciter Speed | 4400 vpm | 5050 vpm | 4400 vpm |
Compaction Depth | Up to 12 in | Up to 12 in | Up to 12 in |
Travel Speed | Up to 90 ft/min | Up to 120 ft/min | Up to 90 ft/min |
Compaction Area | 9000 sq ft/hr | 12000 sq ft/hr | 9000 sq ft/hr |
Water Tank Capacity | 3 gal | 1 gal |
Features
- Compaction Depth: Up to 12 in
- Compaction Area: 12,000 ft2/hr
- Engine: Honda GX160
- Travel Speed: Up to 120 ft/min
- Plate Size (WxL): 20 x 22
- Operating Weight: 165 lbs
- Amplitude: 165 lbs
- Centrifugal Force: 3,250 lbs
- Exciter Speed: 5,050 vpm
Copy Set
Specs
Model | AP2000 | GP2000 | AP2018 |
|---|---|---|---|
Engine Option | Honda GX160 | Honda GX160 | Honda GX160 |
Operating Weight | No Water - 168 lbs Full Water - 193 lbs | 165 lbs | No Water - 168 lbs Full Water - 178 lbs |
Plate Size WxL | 20 x 22 in | 20 x 22 in | 20 x 22 in |
Centrifugal Force | 2475 lbs | 3250 lbs | 2475 lbs |
Exciter Speed | 4400 vpm | 5050 vpm | 4400 vpm |
Compaction Depth | Up to 12 in | Up to 12 in | Up to 12 in |
Travel Speed | Up to 90 ft/min | Up to 120 ft/min | Up to 90 ft/min |
Compaction Area | 9000 sq ft/hr | 12000 sq ft/hr | 9000 sq ft/hr |
Water Tank Capacity | 3 gal | 1 gal |
