Swing Out Appliance Dolly (Geared Ratchet)

Dolly

Specifications

• Swing Out: Our heavy duty appliance trucks are now available with a swing out option to ease the amount of stress on back and legs. Perfect for the professional mover this option will speed up loading and unloading of hard to move items.

Features

• Toe Plate Size: 4-3/8″ clear x 23-1/2″ wide x 10 gauge
• Size: 58-5/8″H x 23-1/2″W x 13-1/2″L
• Weight: 52.8 lbs
• 1 Belt Geared Ratchet for quicker, easier use

General Description & Dealer Notes

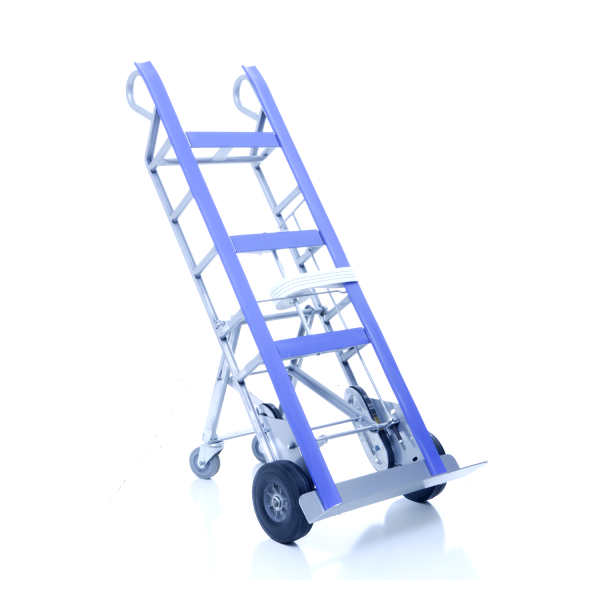

Dutro Appliance Hand Truck 1404-SO is a heavy duty hauler intended to work with difficult and bulky cargo. It can handle up to 700 lbs and offers the “swing out” feature that makes loading and off-loading so easy. It has a single belt ratchet system to secure the load.

Opening Swing Out 1. Pull and hold “T” handle to release swing out. 2. Raise small wheel assembly into locking position. 3. Release “T” handle and tilt truck into 4 wheel position.

Closing Swing Out 4. Raise truck into upright position.

With foot push locking axle forward. Lower small wheel assembly into locking position.

5. Rotate casters into locking position.
