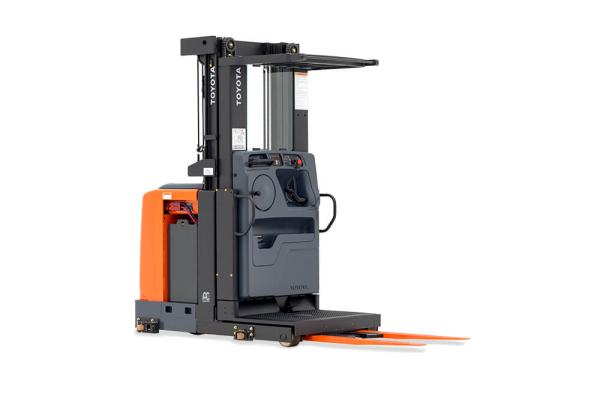

Toyota Toyota Order Picker (3,000 LBS)
| Make | Toyota |
| Model | Order Picker (3,000 LBS) |
| Type | Order Pickers |
How can we help?
Description
Overview

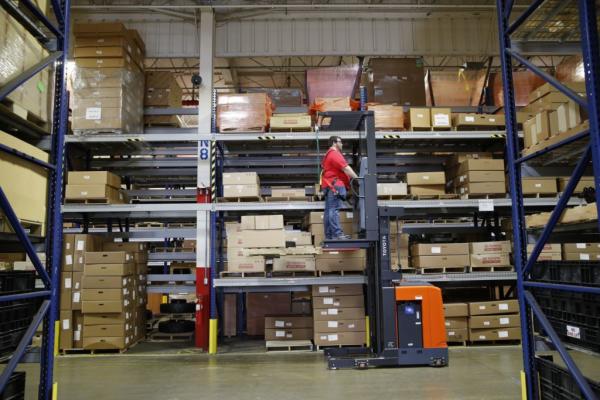

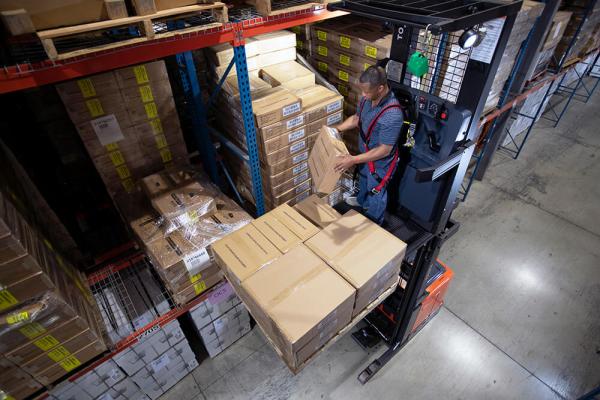

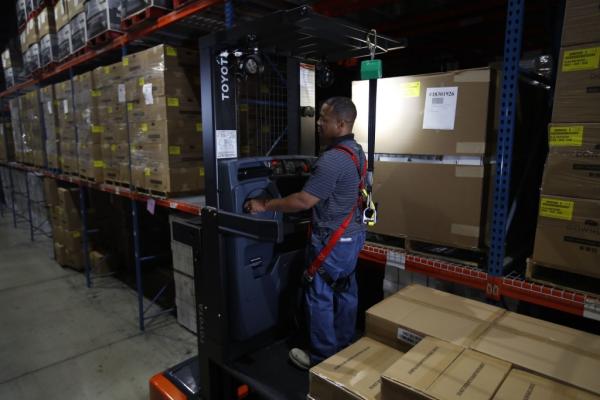

The Toyota Order Picker solves even the most challenging high-reaching warehouse needs. With lift heights up to 390 inches and cushioned mast staging, it helps operators comfortably reach your tallest racks for order picking. The Toyota Order Picker easily maneuvers narrow aisles in warehouses with minimized rack impact during case picking thanks to optional wire guidance and double rail guidance systems. You’ll also drive to optimal efficiency with optional Lift Logic technology that continuously monitors lift height, allowing for optimized travel speed at various lift heights while still maintaining safe operation.
Lift Logic
Toyota’s Lift Logic continuously monitors speed and lift height, allowing for optimized travel speed. This helps operators increase productivity. Lift logic boosts efficiency well beyond conventional lift/lowering speed monitoring systems.

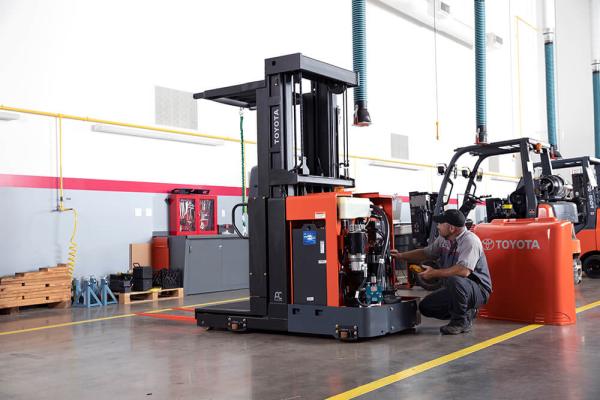

Continued Performance with Toyota 360 Support
More order picker owners are seeking equipment that will help them keep lifting into the future. Toyota offers some of the top-manufactured equipment on the market, and the Toyota Order Picker is just one of many warehousing products that help keep your business moving. To keep this and all of your other Toyota manufactured equipment running long into the future, consider a Planned Maintenance (PM) plan with Toyota 360 Support. This program is our promise that we’ll be your partner for the full lifetime of your forklift and beyond. Toyota Technicians will use Toyota Genuine Parts to keep your rig lifting and moving.
Models
Order Picker
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8BPUE15 | 3,000 | 6.5 | 33 | N/A | N/A |
| 8BPU15 | 3,000 | 6.5 | 57 | N/A | N/A |
| 8BPUH15 | 3,000 | 6.5 | 80 | N/A | N/A |
Specifications
- Available Models: 3 Available Models
- Length to forkface: 74 - 83.75 in
- Load Capacity: 3,000 lb. Load Capacity
- Overall Width: 40 - 60 in
- Overhead Guard Height: 88.25 in
- Voltage: 24 / 36 Voltage
Features
- 24V or 36V Electrical System
- Automatic Locking Pallet Clamp
- Emergency Manual Lowering Valve
- Regenerative Braking
- Model Available: 36V
- AC Drive and Lift Motors on most models
- Electronic Disc Brake
- Battery Compartment Rollers
- No Tools, High-Impact Service Access Covers
- Cushioned Mast Staging
- Programmable Performance
- Spring Platform Suspension System
- Lift Height: 390 in.
- Automatic Return to Center Drive Tire at Startup

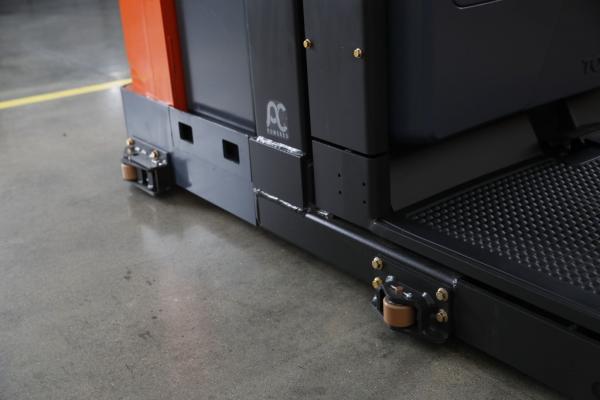

- Rail & Wire Guidance Systems Available
- On-Board Diagnostics
- Fully Variable Lift/Lower Controls
- 4 Function Hour Meter
- Hydraulic Mast Lowering Deceleration
- Anti-Rattle Mast
- Full Body Harness and Energy-Absorbing Tether

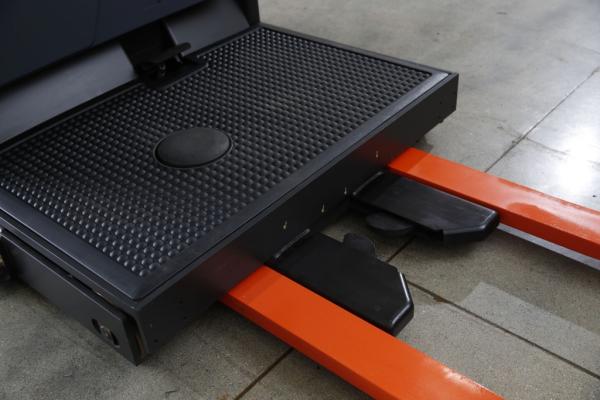

- Bubble Cushioned Floor Mat
- Wire Mesh Mast Guard
- Lift/Lower Speeds: Industry-Leading
