JCB S2632E
| Make | JCB |
| Model | S2632E |
| Type | All Aerial Work Platforms |
How can we help?
Description
JCB - S2632E - ACCESS PLATFORMS — HIGHER STANDARDS
JCB have used their experience in designing tough, hardworking equipment to ensure their electric scissors range are also built to higher standards.
But as well as giving you tough, hardworking equipment, we also give you choice. Our access platforms are now available as hydraulic drive and electric drive. Whichever you choose, all come with higher levels of safety, ease of use, reliability and serviceability as standard.

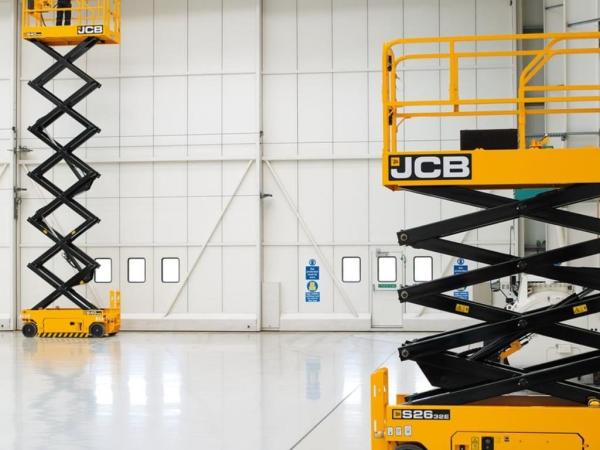

S2632E - this mid-range electric scissor lift by JCB is fitted with all the safety and productivity features common throughout the Access range, with a higher lift for enhanced versatility.
GREATER PRODUCTIVITY AND PERFORMANCE
The S2632E, as with all of the JCB electric scissor range, has easily collapsible guard rails further increasing machine versatility.
• Control cradle design allows for use on all sides of the basket and enables easy operation from both in the basket and on the ground.
• Waterproof cover on the power to platform outlet protects the socket, ensuring it is ready to use.
• Easy to use spring clips allow the platform rails to fold down for maneuvering in confined spaces.
• Easy to view charge level indicator keeps you informed of battery status.
DESIGNED FOR RELIABILITY. BUILT TO LAST.
JCB understand the rental market and realize the importance of maximizing uptime over a lifetime with tough, long-lasting components.
• Industry standard components allows seamless integration into existing rental fleets.
• Features such as the full pivot boss design on scissor pack, weld designs and motor protection plates are all designed using JCB's 75 years of engineering and manufacturing experience.
• Unique to JCB, our battery and hydraulic door wear pads ensure the weight is supported whilst closed, preventing the doors dropping over time.
• Automotive style foot pedal to release the extension deck provides an intuitive and ergonomic operation.
EASIER TO USE.
JCB recognize the need for easy-to-use equipment to maximize productivity.
• Platform outlet in the basket makes connecting power tools easy.
• Ergonomically designed door handle makes for easier and safer entry, even with gloved hands.
• Ergonomic controller cradle for both left and right use and an automotive style foot pedal for deck extension.
• Large handle on the battery isolator means it can be operated whilst wearing gloves.
EASIER TO SERVICE
We recognize that an easy to service design saves time and money.

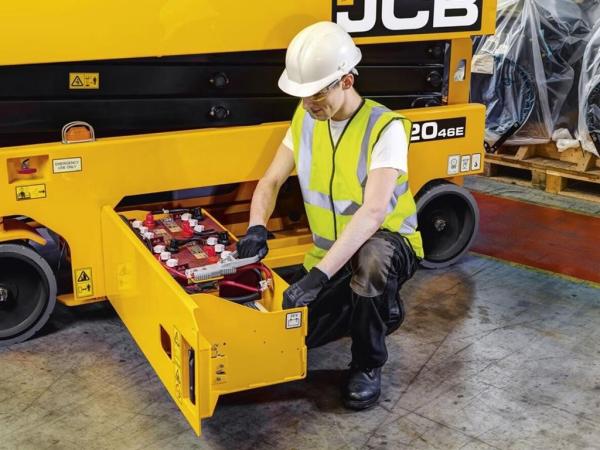

• Ground level access to batteries and hydraulics plus high quality JCB parts like filters and valve blocks, servicing time and therefore costs are kept to an absolute minimum.
• LiveLink Lite, our innovative telematics system lets you monitor your equipment remotely and alerts you to any unplanned movements or working outside operational hours.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Specifications
- Details - Battery Ah: 6V x4 (225)
- Details - Brake: 2, rear-wheel
- Details - Drive and steer model: 2, front-wheel
- Details - Gradeability %: 25
- Details - Ground clearance (stowed) in (m): 4 (10)
- Details - Hydraulic oil tank vol. gal (L): 3.7 (14)
- Details - Hydraulic system pressure psi (Mpa): 24
- Details - Hydraulic system tank vol. gal (L): 4.75 (18)
- Details - Input voltage of charger V AC: 100-240
- Details - Load capacity lb (kg): 550 (250)
- Details - Lowering speed (loaded) s: 35-40
- Details - Max. allowable side force (indoor) lbf (N): 90 (400)
- Details - Max. allowable side force (outdoor) lbf (N): -
- Details - Max. allowable slope (front/back) degrees: 3
- Details - Max. allowable slope (side/side) degrees: 1.5
- Details - Max. allowable wind speed (outdoor) m/s / mph: -
- Details - Max. driving speed (raised) mph (km/h): 0.5 (.08)
- Details - Max. driving speed (stowed) mph (km/h): 2 (3.2)
- Details - Max. platform occupants (indoor): 2
- Details - Max. platform occupants (outdoor): -
- Details - Output voltage of charger A: 25
- Details - Platform size (L x W x H) in. (m): 89 x 32 x 43 (2.25x 1.15x 1.1)
- Details - Power unit V DC (kW): 24 (3.3)
- Details - Rising speed (loaded) s: 30-35
- Details - Solid tire dimensions in (mm): 15 x 5 (380 x 125)
- Details - Tires: Non-marking
- Details - Turning radius (inside) in (m): 0
- Details - Turning radius (outside) ft-in (m): 6-11 (2.1)
- Details - Wheelbase in (m): 73 (1.85)
- Dimensions - Extension outreach in (m): 35(0.9)
- Dimensions - Ground Pressure per Tire psi: 205 psi
- Dimensions - Max. Platform height ft-in (m): 26-0 (7.92)
- Dimensions - Max. wheel loading lb (kg): 2,410 (1,093)
- Dimensions - Overall height (stowed, guardrail folded) ft-in (m): 6-5 (1.96)
- Dimensions - Overall height (stowed, guardrail unfolded) ft-in (m): 7-8 (2.35)
- Dimensions - Overall length (stowed) ft-in (m): 7-10 (2.39)
- Dimensions - Overall weight lb (kg): 4,808 (2,866)
- Dimensions - Overall width (stowed) ft-in (m): 2-8 (0.81)
